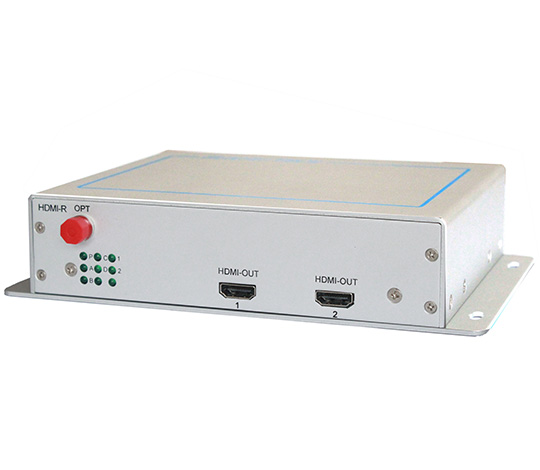

HDMI video optical transmission
HDMI HD digital series of optical multiplexers adopt international advanced transmission technologies of digital
uncompressed video and gigabit fiber, TDM, WDM, CWDM etc., transmitting various resolution HDMI HD signals that output from 1-8 channel host computer, HD video signal source, 1-8 channel uni-bi-directional audio signals, 1-8 channel serial data(RS232/RS422/RW485), 100M network, on single/four fiber with real-time synchronization, no distortion, high fidelity. Broke through the limit of short-distance cable transmission for HDMI HD video signals, extended the application range and transmission distance, make it possible to widely spread HD video. HDMI multiplexers support kinds of transmission formats like serial data RS232/RS422/RS485, contact closure, audio, Ethernet, phone etc. It’s modular design, plug and play, no needing field regulation, designed in wide operating temperature from -30 ºC to 75 ºC with performance of dust/salt fog proof, makes it completely suitable for harsh environments.
All-digital, uncompressed, HD-SDI fiber transmission
Support 1-8 channel DVI HD-SDI video transmission
Compatible support DVI 1.3 standard
Automatically recognize and configure various display mode
Support E-DDC display mode memory and remote reading, correct load
Gigabit fiber transmission, large capacity, easy to upgrade
Max support 12bit color depth
HDMI input/output max efficient transmission distance can reach 15m
Built-in auto equalizer, clock re-timing
Industrial and modular designs make the device reliable and flexible
Power supply, optical fiber link, data state indicator, easy to operate on site
Automatically recognize the input video format, receiver output conforms to industry standard video
视频特性 | |
通道数量 | 1-8路（发射机支持环路输出） |
颜色深度 | 8/10/12bit |
像素时钟 | 225MHz |
视频带宽 | 5.4Gbps |
差分输入电平 | 800-1200mVp-p(典型) |
接口标准 | HDMI 1.3b |
分辨率 | UXGA 1600*1200@60HZ WUXGA 1920*1200@60HZ HDTV：1080P 2048*1080@60HZ |
数据特性 | |
数据接口 | 1-8路可选(单/双向) |
接口信号 | RS-232、RS-422(全双工) RS-485 (2/4线制)、曼码等 |
码速率 | 0～256Kbps |
误码率 | ≤ 10-9 |
音频特性 | |
通道数量 | 1-8路 |
电平 | 输入/输出电平：5Vp-p，非平衡 |
总谐波失真 | ≤1% |
带宽 | 20~20KHz |
音频编码 | 24bit |
输入/出阻抗 | 600Ω or 100KΩ |
音频编码 | 24bit |
加权信噪 | ≥85dB |
环境特性 | |
温湿度 | 环境温度：-40℃～+75℃，贮存温度：-40℃～+85℃ 相对湿度：0～95%(无冷凝结) |
额定电压 | AC 220V/50Hz（设备工作电压DC5V） |
MTBF | ≥100000小时 |
光学特性 | |
光纤接口 | FC/SC/ST |
光纤芯数 | 单芯/四芯传输 |
光纤波长 | 850/1310/1470/1490/1510/1530/1550/1570/1590/1610nm |
光纤模式 | 单模/多模 |
出纤光功率 | 光源(-11～-4)dBm |
接收灵敏度 | ≥-25dBm |
机械特性 | |
结构尺寸 | 210 × 160 × 25mm |
产品重量 | 0.55kg |
网络特性 | |
以太网协议 | 符合IEEE协议 |
网络速率 | 10M/100M自适应 |
网络接口 | RJ45 |
开关量 | |
输 入 | 支持常开、常闭点输入，支持电压量、电阻量输入 |
输 出 | 开关触点输出，容量 24VDC/1A |
接口端子 | 凤凰端子 |
反应速度 | 优于0.1秒 |
HF-HDMI-1000-T/R-S-3
HF-HDMI-1100-T/R-S-3
HF-HDMI-1010-T/R-S-3
HF-HDMI-1110-T/R-S-3
HF-HDMI-1111-T/R-S-3
HF-HDMI-8111-T/R-S-3
