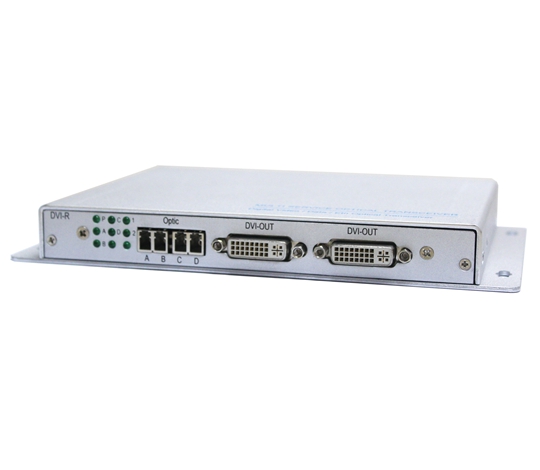

Uncompressed HD video series
DVI HD digital series of optical multiplexers adopt international advanced transmission technologies of digital uncompressed video and gigabit fiber, TDM, WDM, CWDM etc., transmitting various resolution DVI HD signals that output from 1-8 channel host computer, HD video signal source, 1-8 channel uni-bidirectional audio signals, 1-8 channel serial data(RS232/RS422/RW485), 100M network, on single/four fiber with real-time synchronization, no distortion, high fidelity. Broke through the limit of short-distance cable transmission for DVI HD video signals, extended the application range and transmission distance, make it possible to widely spread HD video. DVI multiplexers support kinds of transmission formats like serial data RS232/RS422/RS485, contact closure, audio, Ethernet, phone etc. It’s modular design, plug and play, no needing field regulation, designed in wide operating temperature from -30 ºC to 75 ºC with performance of dust/salt fog proof, makes it completely suitable for harsh environments.
All-digital, uncompressed, HD-SDI fiber transmission
Support 1-8 channel DVI HD-SDI video transmission
Automatically recognize and configure various display mode
Compatible support DVI 1.0 standard
Single/dual link transmission
Gigabit fiber transmission, large capacity, easy to upgrade
Max support 12bit color depth
Built-in auto equalizer, clock retiming
Support E-DDC display mode memory and remote reading, correct load
Industrial and modular designs make the device reliable and flexible
Power supply, optical fiber link, data state indicator, easy to operate on site
Plug and play, reached high-quality audio output without any adjustment
HDMI video | Chanel | 1-8 channel(support local loop output) |
Color depth | 8/10/12bit | |
Pixel clock | 225MHz | |
Bandwidth | 5.4Gbps | |
Difference input level | 800-1200mVp-p(typical) | |
Interface | DVI 1.0b | |
Display resolution | UXGA:1600*1200@60Hz | |
Data | Interface | *1-8channel(one/two way) |
Terminals | RJ-45 | |
Signals | *RS-232, RS-422(full duplex), RS-485(2/4 | |
line), contact closure etc. | ||
Bit rate | 0-256Kbps | |
Error rate | ≤10⁻⁹ | |
Optical | Interface | LC/FC/SC/ST |
Fibers | single/four fiber | |
Wavelength | 1310/1470/1490/1510/1530/1550/15 70/1590/1610nm | |
Mode | SM/MM | |
Optical power LD | (-11 to -4)dBm | |
Receiving sensitivity | ≥-25dBm | |
Audio | Channel | 1-8 channel |
Input/Output level | *5Vp-p, non-equilibrium | |
THD | ≤1% | |
Bandwidth(-3dB) | 20Hz-20KHz | |
Sample frequency | 48KHz | |
Code: | 24bit | |
Interface | RJ45 | |
Input/output impedance | 600Ω/1000 KΩ | |
SNR(weighting) | S/N≥85dB | |
Environment | Operating Temperature | -30 ºC to 75 ºC |
Storage Temperature | -40℃～+85℃ | |
Relative humidity | 5～95% (non-condensing) | |
Rated voltage | *AC220V/50Hz | |
MTBF | ≥100000hrs | |
Mechanical | Dimension | (L*W*H): 210*140*25mm |
Weight | 0.55Kg | |
Mounting | Stand-alone/Rack mounting | |
Contact closure | Received signal | Contact closure |
Input | *support normally open/close contacts input, | |
voltage/resistance input | ||
Output | *Switch contact output, capacity 24VDC/1A | |
Interface terminal | 5-pin,plug-in terminal block | |
Reaction rate | superior to 0.1s | |
Network | Ethernet | IEEE protocol |
Rate | 10M/100M | |
Interface | RJ45 |
Model | Fiber | Transmission | Wavelength | Distance |
HF-VDI-1000-T/R-S-3 | Single-mode（62.5/125μm） | 1 VDI | 1310/1550nm | 30KM |
HF-VDI-1100-T/R-S-3 | Single-mode（9.0/125μm） | 1 VDI+1D | 1310/1550nm | 30KM |
HF-VDI-1010-T/R-S-3 | Single-mode（9.0/125μm） | 1 VDI+1A | 1310/1550nm | 30KM |
HF-VDI-1110-T/R-S-3 | Single-mode（9.0/125μm） | 1 VDI+1D+1A | 1310/1550nm | 30KM |
HF-VDI-1111-T/R-S-3 | Single-mode（9.0/125μm） | 1 VDI+1D+1A+1E | 1310/1550nm | 30KM |
HF-VDI-8111-T/R-S-3 | Single-mode（9.0/125μm） | 8 VDI+1D+1A+1E | 1310/1550nm | 30KM |
