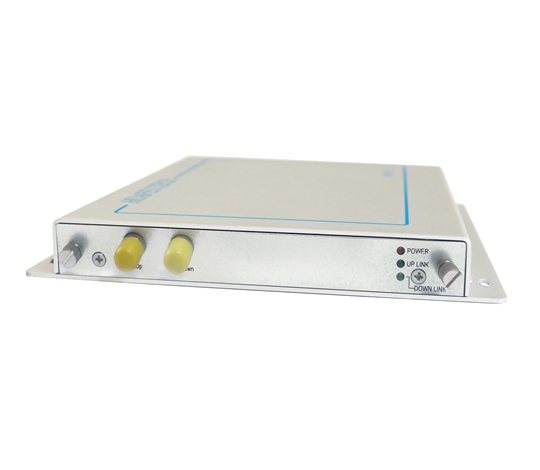

Features

8/10 digit coding, uncompressed video transmission

Support high resolution video signals

Exceed RS250C regulations to SNR, DG, DP

Auto compatible with PAL, NTSC, SECAM

With APC circuit, constant optical power output, large dynamic range

Surface Mount Technology

Gigabit fiber transmission, large capacity, easy to upgrade

Max transmission distance without repeater can reach 120km

Power supply and LED indicator monitors the running status of the system

Auto-negotiation technology, no needing on site electric/optical adjustment

Industrial and modular designs make the device reliable and flexible

Power supply, optical link, data state indicator, easy to operate on site

Specifications
Video:
* Interface: 1-channel
* Bandwidth: 5Hz-10MHz
* Interface: BNC
* Input/output impedance: 75Ω (non-equilibrium)
* Input/output voltage: 1Vp-p
* DG(10-90% APL): DG<1%(typical)
※ DP: (10-90% APL): DP<1°(typical)
* SNR(weighting): S/N≥67dB(max optical link loss)
 Data:
* Interface: 1-channel
* Interface terminals: 5-pin, plug-in terminal block
* Interface signals: RS-485(2 wire), contact closure, etc.
* Bit rate: 0-256Kbps
* Error rate: ≤10⁻⁹
Optical:
* Interface: FC/ST
* Fibers: single fiber
* Wavelength: 1310/1550nm
* Mode: Single/Multi-mode
* Optical power LD: (-11 to -4)dBm
* Receiving sensitivity: ≥-26dBm
Environment:
Temperature: -30 ºC to 75 ºC
* Storage temperature: -40 ºC to 85 ºC
* Humidity:  0 ºC to 95%( non-condensing)
* Rated voltage: AC220V/50Hz
※ MTBF: ≥100000hrs
Mechanical:

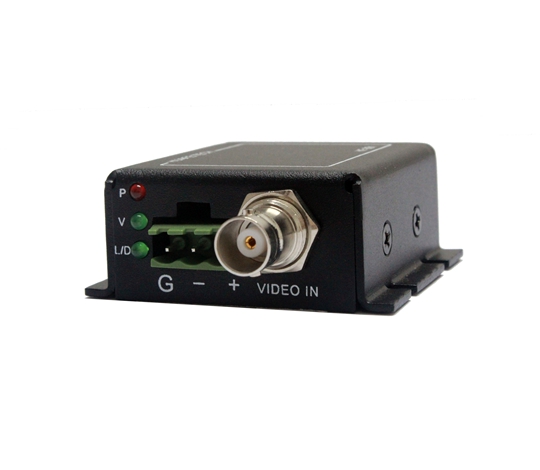

* Dimension: (L*W*H): 69*50*24mm
* Weight: 0.1kg
* Mounting: Standalone


Measure
Ordering information

HF-1V-T/R-M-2-MINI

HF-1V-T/R-S-2-MINI

HF-1V-T/R-S-6-MINI

HF-1V1D-T/R-M-2-1-MINI

HF-1V1D-T/R-S-2-1-MINI

HF-1V1D-T/R-S-6-1-MINI
