Features

2 Port 1000M Industrial Media converter

Support STP, RSTP, Support IEEE802.1Q, VLAN

Support WEB interface configuration

Comply with electromagnetic compatibility requirements with industrial 4 grade

10/100/1000M, half/full duplex, MDI/MDI-X auto-negotiation

Green industry series without fan and low-power design

Support port speed limit, broadcast storm control

Meet the stringent electrical environment and work requirements

Alarm output of power control

IP40 protection grade,metal shell

DIN Rail/Wall mounting

CE, FCC, RoHS certification

Specifications

Physical Port

1000M-FX

1000Base-FX,single/multi mode, SC/FC/LC

1000M-TX

10/100/1000Base-T(X) auto negotiation, RJ45 connector

Transmission Distance

Twisted pair

100m(Adopt standard CAT5, CAT5e)

Multi-mode

850nm 550m(1000M)

Single mode

1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M)

Technology

Standards

IEEE802.3i/802.3u/802.3x/802.1q/802.3ah/802.1d/802.1w,

Protocol

SNMP



MIB



MIB-II

DDM Function

Tx/Rx Optical Power and Temperature control

Flow Control

IEE802.3x flow control, back pressure flow control

Switch Properties

Maximum No of Available VLANs

4094

VLAN ID Range

1-4094

MAC Table Size

8K

Packet Buffer Size

1Mbit

Packet Forwarding Rate

3Mpps

Switching delay

<5μS

Interfaces

FX Port

1000Base-X, fiber optical interface

RJ45 Port

10/100/1000Base-T(X) auto negotiation

Console Port

RJ45 connector, RS232 TX/RX

Alarm Contact

2-pin relay output

LED indicators

Power

Green On - Power on    Green Off - Power off

System Indicator

Green On - The system starts up successfully

Green Off - The system doesn’t start up successfully







10/100/1000Base-T(X)

RJ45 Port Indicator

Yellow for port speed:

Yellow On —The port works at 1000Mbps. Yellow Off—The port works at 100Mbps. Green for port Link/Act:

Green On and Blinking—Port LINK UP, data is transmitted.

Green On  No Blinking –Port Link Up Green Off - Port Link down



1000Base-X Fiber Port Indicator

Green for port Link/Act:

Green On and Blinking—Port Link Up, data is transmitted.

Green On—Port Link Up Green Off—Port Link Down

Power

Input Voltage

220VAC/DC(88~264VAC,120~300VDC),    optional

24VDC(10~36VDC), 48VDC(18~72VDC),

110VDC(72~154VDC)

Full Load

5W

Overload Current Protection

Yes

Reverse Polarity Protection

Yes

Connection

5-Pin terminal block

Environmental Limit

Storage Temperature

-40 to 85ºC (-40 to 185)

Operating Temperature

-40 to 85ºC (-40 to 185)

Operating Humidity

5% to 95% Non-condensing

Physical Characteristic

Enclosure

Metal housing with IP40 Protection

Dimension (W x D x H)

36×105×155mm

Weight(kg)

0.55kg

Installation

Din-Rail mounting, Wall mounting

Warranty

5 years

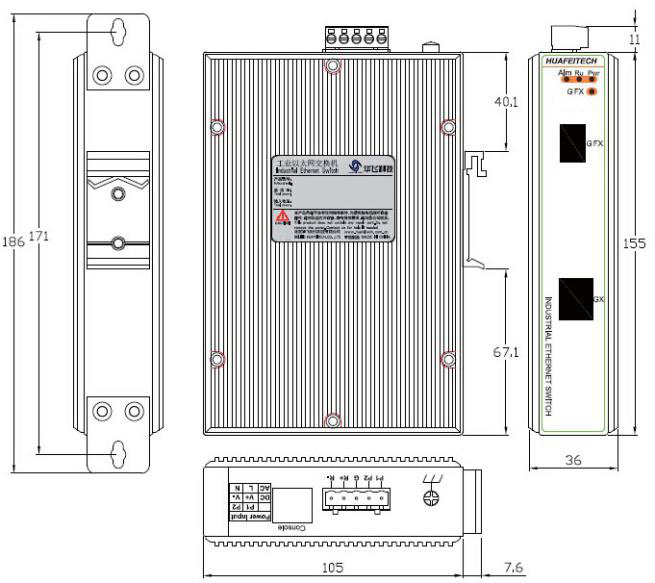

Measure


Ordering information

HF-IMC-2502M-1GFX-1GTX-S-2

HF-IMC-2502M-1GFX-1GTX-S-4
