Features

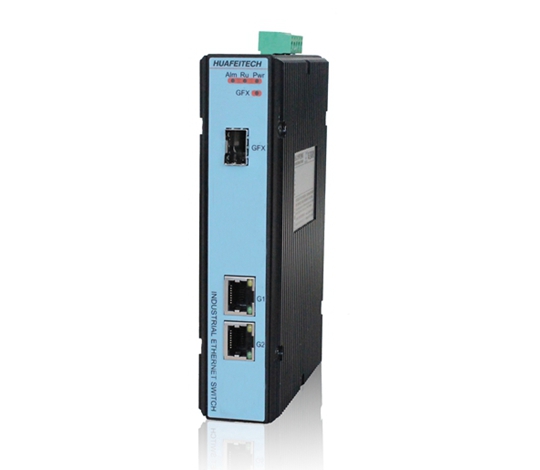

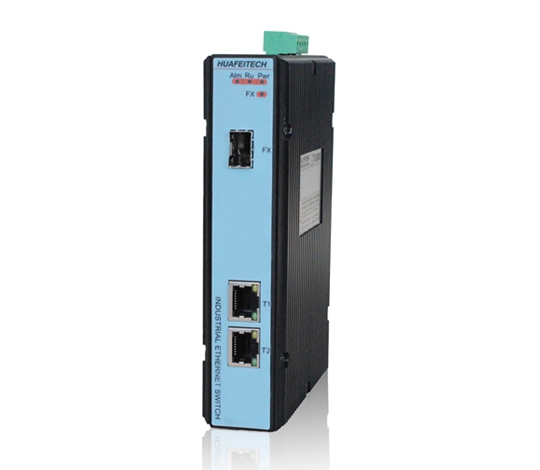

3 Port 100M Industrial Media converter

Support STP, RSTP, Support IEEE802.1Q, VLAN

Support port speed limit, broadcast storm control,

Support WEB interface configuration, command line configuration

Comply with electromagnetic compatibility requirements with industrial 4 grade

Variety of power input option

10/100M, half/full duplex, MDI/MDI-X auto-negotiation

Green industry series without fan and low-power design

Wide working temperature -40℃~+85℃

Meet the stringent electrical environment and work requirements

Alarm output of power control

IP40 protection grade,metal shell

DIN Rail/Wall mounting

CE, FCC, RoHS certification

Specifications

Physical Port

100M-FX

1000Base-FX,single/multi mode, SC/FC

100M-TX

10/100Base-T(X) auto negotiation, RJ45 connector

Transmission Distance

Twisted pair

100m(Adopt standard CAT5, CAT5e)

Multi-mode

1310nm 5KM(100M)

Single mode

1310nm 40KM/60KM(100M) 1550nm 60KM/80KM(100M)

Technology

Standards

IEEE802.3i/802.3u/802.3x/802.1q/802.3ah/802.1d/802.1w

Protocol

SNMP



MIB



MIB-II

DDM Function

Tx/Rx Optical Power and Temperature control

Flow Control

IEE802.3x flow control, back pressure flow control

Switch Properties

Maximum No of Available VLANs

4094

VLAN ID Range

1-4094

MAC Table Size

8K

Packet Buffer Size

1Mbit

Packet Forwarding Rate

0.45Mpps

Switching delay

<5µS

Interfaces

FX Port

100Base-X, fiber optical interface

RJ45 Port

10/100Base-T(X) auto negotiation

Console Port

RJ45 connector, RS232 TX/RX

Alarm Contact

2-pin relay output


LED indicators



Power

Green On - Power on    Green Off - Power off

System Indicator

Green On - The system starts up successfully

Green Off - The system doesn’t start up successfully







10/100Base-T(X)

RJ45 Port Indicator

Yellow for port speed:

Yellow On —The port works at 100Mbps. Yellow Off—The port works at 10Mbps. Green for port Link/Act:

Green On and Blinking—Port LINK UP, data is transmitted.

Green On  No Blinking –Port Link Up Green Off - Port Link down



100Base-X Fiber Port Indicator

Green for port Link/Act:

Green On and Blinking—Port Link Up, data is transmitted.

Green On—Port Link Up Green Off—Port Link Down

Power

Input Voltage

220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC),

48VDC(18~72VDC),110VDC(72~154VDC)

Full Load

5W

Overload Current Protection

Yes

Reverse Polarity Protection

Yes

Connection

5-Pin terminal block

Environmental

Storage Temperature

-40 to 85ºC (-40 to 185)

Operating Temperature

-40 to 85ºC (-40 to 185)

Operating Humidity

5% to 95% Non-condensing

Physical Characteristic

Enclosure

Metal housing with IP40 Protection

Dimension (W x D x H)

36×105×155mm

Weight(kg)

0.55kg

Installation

Din-Rail mounting, Wall mounting

Warranty

5 years

Measure


Ordering information

HF-IMC-2003M-1FX-2TX-S-2

HF-IMC-2003M-1FX-2TX-S-4
